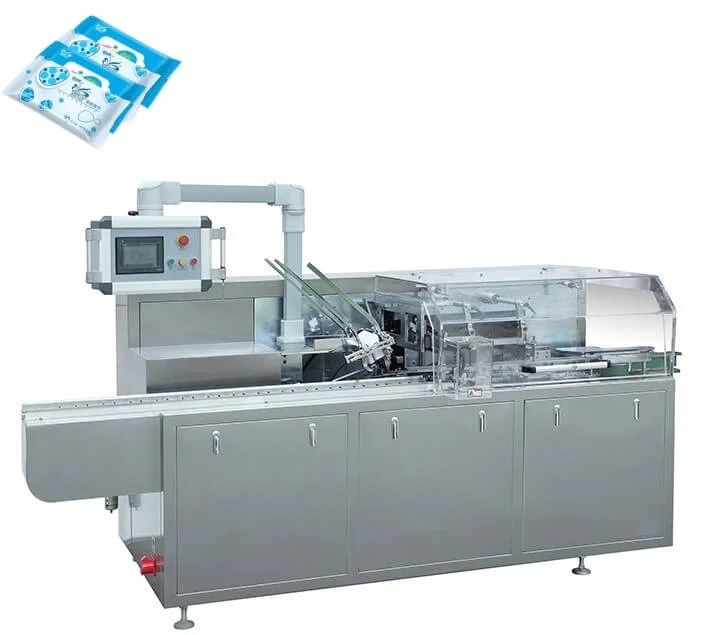

The automatic Cartoning Machine is the most recent advancement made possible by sophisticated technology both domestically and internationally. It is a high-tech product that integrates light, electricity, air, and a motor. Improving the qualities and efficiency of the equipment when it is in use. because of its quick response time It can keep up with the demands of fast packing while remaining stable. Even under high-speed working situations, the state is reliable. Pharmaceutical, food, health-care, batteries, and hardware industries all use automated product packaging. This machine’s principal application is in other industries. Conveying boxed items and robotic carton unwrapping are examples of processes. The automatic packing of objects involves the automatic packing of user guides (if applicable) and merchandise, as well as the transportation of packaged goods.
Automated cartooning machines are machines that allow you to customise carton packages for a variety of commodities. The machine necessitates the integration of light, electrical, air, and mechanical systems. Cartoning machines are packing machines that are used to create cartons. The cartons are folded, side seams are sewn, and the cartons are sealed by the machine. They are straight when closed.
Main performance and structural characteristics:
- Automatic feeding, unpacking, feeding, sealing, and output are all used. The structure is compact and reasonable, and the operation and adjustment are straightforward, as is the case with other packaging types.
- To make the display operation of the man-machine interface clearer and more convenient, with a high degree of automation and more humanistic, servo / stepping motor, touch screen, and PLC programmable control system are used.
- The photoelectric eye automatic recognition and tracking technology is used, and no product is left without a suction box, allowing for optimal packaging material savings.
- Large selection of packaging, simple adjustments, and quick conversion between different standards and sizes
- To modify the specs, it is not essential to change the mould; only adjustments are required.
- The machine will idle without pressing the product if there is no product or if the product is not in place. It will execute automatically once the product is restored to supply. When the product is placed in the box, it will turn off automatically and the main drive motor overload protection device will activate.
- Packing speed and counting are automatically displayed.
- A flip-up safety cover is used to meet client needs for easy operation and a beautiful appearance.
- To achieve linked production, it can be connected to an aluminum-plastic packaging machine, a pillow packaging machine, a three-dimensional packaging machine, a bottling line, a filling machine, a labelling machine, an inkjet printer, an online weighing instrument, and other production lines and equipment.
- Various automatic feeders and cartoning systems can be designed to meet the needs of packaging materials.
- According to customer requirements, the hot melt adhesive machine can be equipped with hot melt adhesive spray glue sealing box
Technical parameter:
| Item | Parameter | Note | |
| Material type | |||
| Cartoning speed | 30-100 Box/minute | ||
| Paper box requirement | Paper quality | 250-400g/m2 | Requires flat surface and can be absorbed |
| Size range | L(50-250) x W(25X150) x K(15-70) | (LxWxH) | |
| Compressed air | Pressure | ≥0.6MPa | |
| Air consumption | 20m3/h | ||
| Power | 220V-380V 50Hz | ||
| Main motor | 1.5kw | ||
| Overall dimension LXWXH | 3500X1500X1800mm | Machine dimension | |
| Net weight | 1300kg |
Configuration list:
| SN | Name | Model & Speciation | Original | Qty |
| 1 | PLC | CPIE-N30SIDT-D | Japan Omron | 1 |
| 2 | PLC Expansion Module | CPIW-C1F11 | Japan Omron | 1 |
| 3 | Encoders | E6B2-CWZ6C | Japan Omron | 1 |
| 4 | Touch screen | NB7W-TWOOB | Japan Omron | 1 |
| 5 | Frequency inverter | 3G3JZ-A4015 | Japan Omron | 1 |
| 6 | Light-eyed | E3ZG-D61-S | Japan Omron | 1 |
| 7 | Motor | CH-1500-10S 1.5KW | Zhejiang China | 1 |
| 8 | Indexing box | 0S83-4L-180 | Zhejiang China | 1 |
| 9 | Buttons | XB2 | Schneider (Germany) | 3 |
| 10 | Emergency stop | ZB2 BC4D | Schneider (Germany) | 1 |
| 11 | Intermediate relay | LY2M 24V | Japan Omron | 5 |
| 12 | AC contactor | 1810 | Schneider (Germany) | 1 |
| 13 | Proximity switch | LJ12A3-4-Z1BX | Shanghai, China | 2 |
| 14 | Casing | 304 SUS | Shanghai, China | 1 Set |
| 15 | Air switch | 3P32A | Schneider (Germany) | 1 |
| 16 | Switching Power Supplies | PMC-24V050W1AA | Delta (Taiwan) | 1 |
Maximized Capacity Utilization:
- The success rate is greater than 95%.
- Continuous lotion delivery and an automatic raw material splicing system allow for nonstop manufacturing.
- Up to 20 product recipes can be programmed in this branded HMI.
- The CIP system cleans hands-free tanks and pipe lines.
Increased Product Flexibility:
- Handle even the most difficult-to-run Eco-claimed substrates with ease: substrates that dissolve/flush; bamboo fibres that are 100 percent bamboo; cotton that is 100 percent cotton; viscose that is 100 percent viscose
- On the touch screen, you may alter a wide range of tissue sizes, counts, and packing sizes.
- Adaptable to shifting market conditions
Model Comparison:
| MACHINE MODEL | CAPACITY SPEED | AUTOMATION | MACHINE DIMENSIONS |
|---|---|---|---|
| UT-FL4 | 1500pcs/min 100packs/min | Full automatic | 10500×3800×2100 mm(L*W*H) |
| UT-FL2 | 1000pcs/min 90packs/min | Full automatic | 12000x1370x2100 mm(L*W*H) |
| UT-FL1+UT-WP | 600Pcs/min 60packs/min | Semi-automatic | 9350x1200x1800 mm(L*W*H) |
Crossfold Wet Wipes Machine:
Model:UT-FL4 :
- Full-Automatic：Making Wet Wipes Machine+Packaging Wet Wipes Machine
- Full Mitsubishi Servo driven, CPU & PLC controlled
- 1500 pieces every pack; 100 packets per minute
- Crossfold is a type of folding.
- Machine Dimensions: 10500×3800×2100 mm(L*W*H)
- Machine Weight: 8000kg
- Premium quality, high capacity, and low total cost of ownership
Model:UT-FL2:
- Full-Automatic：Making Wet Wipes Machine+Packaging Wet Wipes Machine
- Full Mitsubishi Servo driven, CPU & PLC controlled
- Capacity: 1000 pcs/pack; 90packs/min
- Crossfold is a type of folding.
- Machine Dimensions: 12,000×1370×2100 mm(L*W*H)
- Machine Weight: 6000kg
- Middle budgetary Level
Model:UT-FL1+UT-WP:
- 600 pieces every pack; 60 packets per minute
- Folding Types: Crossfold
- Semi-Automation：(Manual Transfer)+Converting Machine+Packaging Machine
- Machine Dimensions: 9,350×1200×1800 mm(L*W*H)
- Machine Weight: 4000kg
- Budget-friendly; Economic model
